Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ENC
  • Model Number: EN606-4T0075
  • Output Power: 7.5-75KW
  • Output Type: Triple
  • Size: Depend
  • Weight: 3KG~300KG
  • Input Voltage: 380V
  • Output Voltage: 0-380V
  • Type: AC-DC-AC
  • Output Frequency: 0-600hz
  • Output Current: 17-150A
  • Application: injection moulding machine special
  • Certificate: CE and ISO9001:2008
  • Warranty: 18 Months
  • Display: LED
  • Protection: Overload
  • Color: Black Gray
  • Control mode: Vector Control
  • Product name: injection molding machine asynchronous servo control cabinet
  • CPU: Fujitsu
  • Speed regulation range: 1:100

Packaging & Delivery

Packaging Details: carton and standard export package
Delivery Detail: 1-10 depends on the quantity and stock

product description



Product name

 injection molding machine asynchronous servo control cabinet

Feature

1.takes DSP as the core, flux vector control,speed up time can be 0.1s,high efficiency

2.double loop for power source /power saving running,automatic reset and power-off reset function ensure production continuity and efficiency

3.double channels input,can accept 0-1A (0-10V) signal and pulse signal under 200hz

4.great overload capacity :150% of rated current for 3 minutes,200% of rated current for 5 seconds

5.no high pressure flooding energy  loss,power save rate reaches 25%-65%

6.temperature of the oil is stable,cooling water can be saved by about 30%

7.the investment can be returned for about 6-15 months by power save .

power range : 3 phase 380V 7.5-75KW



 Technic and index

ItemItem description
InputRating volt., frequency3 phase 380V:50Hz/60Hz
Allowed volt. range320~460V
OutputVoltage0~380V
Frequency0~600Hz
Over loading capacity150% of rated current for 1 minute
Control performanceControl modespeed sensorless vector control, open loop V/F control
Speed regulation range1:100
Start-up torque150% of rated torque at 0.5Hz frequency
Running speed stable state precision≤±0.3% of rating synchronous speed
Frequency precisionDigital setting:max. frequency
Frequency resolutionAnalog setting0.1% of max. frequency
Digital setting0.01Hz
Exterior impulse0.1% of max. frequency
Torque boostAutomatic torque boost, manual torque boost 0.1~12.0%
V/F curve(volt. frequency characteristic)Set rating frequency randomly at range of 5~650Hz,can choose constant torque, degressive torque 1,degressive torque 2,degressive torque 3,user defined V/F curve in total 5 kinds of curve
acceleration and deceleration curves2 modes: linear acceleration and deceleration and "S" acceleration and deceleration; 15 types of acceleration and deceleration time, the time unit is optional(0.01s,0.1s,1s), the max is 1000 minutes

DC brake
Optional start-up and stop. action frequency 0~15Hz,action current 0~100%,action time 0~30.0s
JogThe range of jog frequency:0Hz~the max frequency;jog acceleration and deceleration time 0.1~6000.0S can be settled
Multi-section speed
running
Multi-section speed operation can be achieved by interior PLC or control terminal. As many as 15sections, which has their own acceleration and deceleration time. The interior PLC supports power down save.
Interior PID controllerBe convenient to make closed-loop system
Automatic energy-saving operationOptimize automatically V/F curve base on condition of loading, achieving energy-saving operation.
Automatic voltage regulate(AVR)Automatically keep output voltage constant, when the network voltage vary
Automatic current limitingAutomatic current limiting when operation, in case of the malfunction of frequent over current causing trip
carrier modulationModulate carrier automatically based on the characteristic of load.
Speed tracking restartMake the rotating motor smooth start without shocking
Running functionRunning order specified channelKeypad specified, control terminal specified, communication specified, which can be changed by many means
Running frequency specified channelMain and side specified, realizing a main adjustment and fine control. Digital, analog, impulse, pulse-width, communication specified and other specified can make switch come true
Binding functionRunning order channel and frequency specified channel can be bond arbitrarily, change synchronously
Input
and Out-put char-acter





Digital input channelChannel 8 is for general digital input, the max frequency is1KHz,channel 1 can be pulse input, the max input is 50KHZ, which can be expanded to channel 14
Analog input channelChannel 2 is analog input channel, AI1 can choose 4~20mA or 0~10V as output,channel AI2 is differential input,4~20mA or -10~10V input is available, which can be expanded to channel 4 as analog input
Pulse output channelImpulse square wave signal output of 0~20KHZ, can realize output of physical parameter such as setting frequency,output frequency etc.
Analog output channelchannel 2 of analog signal output, AO1 can be 4~20mA or 0~10V, AO2 can be 4~20mA or 0~10V; through them the inverter can realize output of physical parameter such as setting frequency, output frequency etc. And can be expanded to 4 channel output.
Unique featureRapid current limitingLimit inverter over current to the greatest degree, making it running reliably
Monopulse controlSuitable for the inverter with one key that controls the inverter on or off, which is simple and reliable.
Fixed length controlCan realize fixed length control
Timing controlTiming control function:setting time range:0.1Min ~6500.0Min
Virtual terminalFive group virtual input, output IO, can realize simply logical control
keypadLED displayThe parameters like setting frequency, output frequency, output voltage, output current can be displayed
Lock the buttonLock all or part of the buttons.
Protection functionShot circuit test, phase missing protection when power input and output, over-current protection, over voltage protection, under voltage protection, over heat protection, overload protection, under load protection, relay protection, terminal protection and no stop protection when power off.
AmbientUse ambientIndoor, not bare to sunlight, no dust, no corrosive gas, no flammable gas, no vapor, no water drop or salt etc.
AltitudeLess than 1000 meters.(reduce amount if higher than 1000meters,output current should be reduced to 10% of rated current for every 1000meters)
Ambient temperature-10ºC~+40ºC(under ambient temperature 40ºC~50ºC,please reduce the volume or strengthen heat sink)
Ambient humidityLess than 95%RH,without condenses
vibrationSmaller than5.9m/s ² (0.6g)
Storage temperature-40ºC~+70ºC
Stru-ctureDefending gradeIP20
Cooling modeintelligent air cooling
Mounting mode cabinet







Type



Input
Voltage
 typeRated output
Current(A)
Adaptable motor
(KW)
3 phase
  380V
EN606-4T0075177.5
EN606-4T01102511
EN606-4T01503315
EN606-4T01853918.5
EN606-4T02204522
EN606-4T03006030
EN606-4T03707537
EN606-4T04509145
EN606-4T055011255
EN606-4T075015075

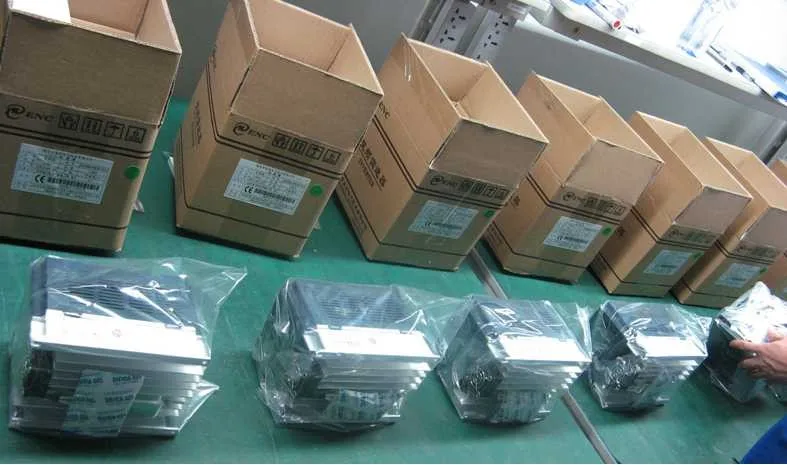

packaging and shipping





           Trade terms: FOB, EXW, CIF, CFR



         Payment condition: TT, Western Union, Paypal, LC



         Lead time: 3-20 days based on quantity



         Package: Standard carton package & wooden case for larger piece



         Shipment: By sea, by air, or by express delivery

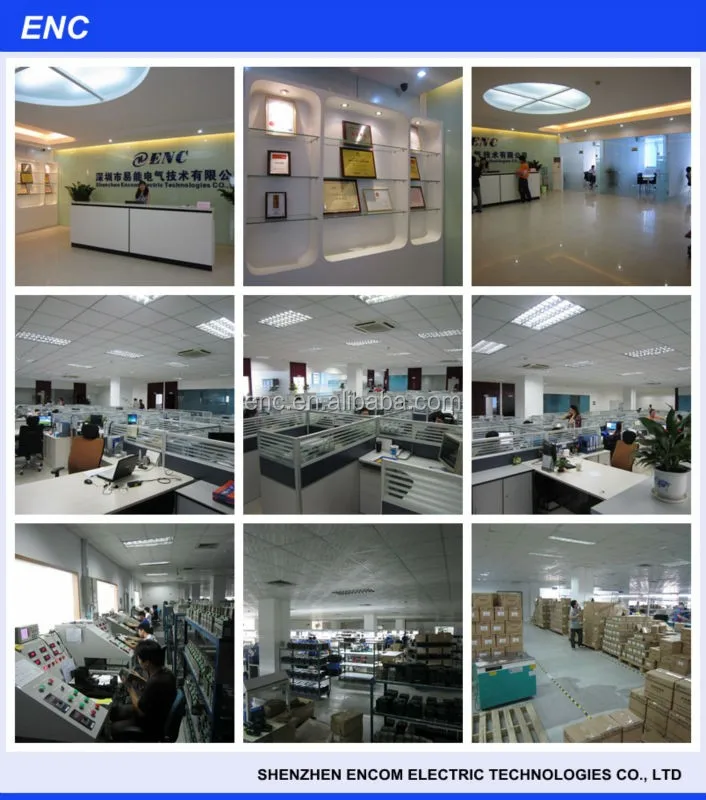

company information



              Company brief introduction



           Founding time :2004



           Company cert : ISO9001:2008 quality control system approval



           Main item:frequency inverter/ACdrive/Variable frequency drive /servo



           Production cert :CE Approval



           Number of research staffs :50



           Factory Size :7000 square meter brand -new manufacture base



           Annual capacity :400million



           Honor of Encom :  National innovation fund



                                           Shenzhen hi-tech r and d subsidies



                                           Business-beginning subsidies for student abroad



                                           Shenzhen software association member











  our customer





      Welcome to inquiry for details  !

      Hope to be your partner  !
