Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ENC
  • Model Number: EDS800 series
  • Output Power: 1 - 200KW
  • Output Type: Triple
  • Size: 17CM*18CM*19CM
  • Weight: VFD-AC Drive 1.25KGS
  • Input Voltage: Triple Phase 220v 380v
  • Output Voltage: Triple Phase 220v 380v
  • Type: AC-DC-AC Inverter
  • Output Frequency: AC Drive 0~400HZ
  • Output Current: VFD 1.6A~3.7A
  • VFD Color: Black & Red
  • Reversal Function: Yes
  • Remote Control Keyboard: Optional
  • Storage Temperature: -40℃+70℃
  • Speed Regulation Range: 1:100
  • PID controller: Built-in
  • Simple PLC Function: Yes
  • AC Drive OEM Service: Accept when amount more than 20000USD
  • AC Drive Display: LED in faulty, LCD optional
  • Brake Unit: Built-In

Packaging & Delivery

Packaging Details: Cartons Cartons
Sponge packing around the units, also with waterproof plastic bag.
For these 0.2kw~1.5kw ENC Variable Frequency Drive-VFD/AC Drive.
Delivery Detail: 3 working days after receiving full payment

Factory Price 220v 380v 400hz 0.2kw~1.5kw ENC Variable Frequency Drive-VFD/AC Drive for Motor Speed Control

EDS800 Model Choose



ModelInput (V)Match Motor
(KW)
Output Current(A)Overload Capacity(A)Packing Size(CM)G.W. (KGS)
EDS800-2S0002N Single Phase VFD 220V 50/60Hz0.21.62.417*19*182
EDS800-2S0004N0.434.517*19*182
EDS800-2S0007N0.754.77.0517*19*182
EDS800-2S0015N1.57.511.2517*19*182
EDS800-4T0007NTriple Phase VFD 380V 50/60Hz0.752.33.4517*19*182
EDS800-4T0015N1.53.75.5517*19*182



EDS800 Features

VFD/ AC Drive Power range: 1 phase 220V 0.2kw~1.5kw ; 3 phase 380V 0.75kw~1.5kw .

  • This VFD/ AC Drive Small size (124.7*89*148.5mm), high cost performance
  • Can make up of inverter network independently and can set to be mainframe or sub-device
  • With potentiometer, keyboard can be pulled outside
  • This VFD/ AC Drive has RS485 communication port;
  • Pulse/analog input output channels for this VFD/ AC Drive
  • Having 16 segments speed control;
  • Multiple running frequency/command specified channels
  • This VFD/ AC Drive Space voltage vector control SVPWM;
  • Hi-performance isolating OC output, AC or DC load of 220V/0.5A can be connected;
  • Traversal function can be widely applied to all kinds of spinning devices;
  • This VFD/ AC Drive Built-in Braking unit;
  • Built-in user's timer/counter.
Details Picture



EDS800 Application

EDS800series mini inverter mainly used for supporting the industry of food machinery, mechanical drawing, printing machinery, industrial air conditioners, textile machinery, water supply and other equipment, as long as plastics, chemical, cement, ceramics and other production line.

Parameter Details
ItemsEDS800 VFD/AC Drives' Description
VFD InputRated Volt, frequencySingle phase: 220V, 50hz/60hz;   Three phase:.380V, 50Hz/60Hz
Allowed work volt. rangeSingle phase: 320V~460V;   Three phase: 200V~260V
VFD OutputVoltageSingle Phase: 0~220V; Three Phase:  0~380V
Frequency0~400Hz
Over loading capacity150% of rated current for 1 minute 200% of rated current for 0.5s;
AC Drive Control performanceControl modeOptimal space voltage vector SVPWM; constant voltage frequency ratio V/F control
Speed regulation range1:100
Start-up torque100% of rating torque at low frequency
Running Speed stable
state precision
≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max. frequency×±0.01% ; analog setting: max. frequency×±0. 5%
Frequency
resolution
Analog setting0.1% of max. frequency
Digital Setting0.01Hz, if <100Hz: 0.01Hz; if ≥100Hz: 0.1Hz.
Exterior Pulse0.1% of max. frequency; EDS800N/1000 series is 0.5% of max. frequency;.
Torque BoostAutomatic torque boost , manual torque boost 0.1%~20.0%
V/F curve (volt.frequency
characeristic)
Set rating frequency randomly at range of 5~400Hz, can choose constant torque, degressive
torque 1, degressive torque 2, degressive torque 3 and user defined V/F curve in total 5
Accelerating /decelerating curve3 kinds of modes: straight line accelerating decelerating, Scurve accelerating decelerating and automatic Acce/Dece mode; 4 kinds of Acce/Dece time (unit of minute/second can be optioned). Max is 6000 minutes.
BrakePower consumption
brake
Built-in or exterior braking resistance (EDS800N built-in braking unit, exterior braking resistance),
details refer to manual
DC BrakeOptional start-up and stop, action frequency 0~15Hz, action volt. 0~15% , action time 0~20.0 s
JogJog frequency range:0.50Hz~50.00Hz; jog accelerating decelerating time 0.1~60.0s can be set
Multi-section speed runnnigRealized by interior PLC or control terminal
Interior PID controllerBe convenient to make closed-loop system
Automatic Energy
saveing running
Optimize V/F curve automatically based on the lo ad to realize power save running
Automatic Volt.regulation
(AVR)
Can k eep constant output volt. When power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over -current which will cause trip
Running FuctionRunning Order
specified channel
Keypad provision, control terminal provision, serial port provision
Running frequency
specified channel
Digital provision, analog provision, impulse provision, serial port provision, combined provision, can be switched at any time by kinds of method
Pulse output channelImpulse square wave signal output of 0~50KHz (for EDS1000/ED S800N it is 0~20KHz) can realize output of physical parameter such as setting frequency, output frequency and etc.
Analog output channel2 channel of analog signal output, each can be 4~20mA or 0~10V (for EDS800N series: 1 channel of analog signal output) ,through them the inverter can realize output of physical parameter such as
setting frequency, output frequency and etc.
VFD KeypadLED displayCan display setting frequency, output frequency, output voltage, output current etc. in total 20 kinds of parameter (EDS800N has 14 kinds of parameter)
Button lockLock all of the buttons; For EDS1000/EDS800N: Lock all or part of the buttons(analog potentiometer can not be locked)
Parameters copyParameters can be quickly copied. by using of keyboard and
remote-control ke ypad(EDS800N/EDS1000 series haven't this function)
AC DRIVE Protection functionOver -current protection, over-voltage protection, lack -voltage protection, over-heat protection, over-load protection etc.
VFD Optional partsBrake subassembly, remote-control keypad, connecting cable for remote-control keypad etc.
AC Drive AmbientUse ambientIndoor, not bare to sunlight, no dust,no corrosive gas,no flammable gas, no oil fog, no vapor, no water drop or salt etc.
AltitudeLower than 1000m
Ambient Temperature-10ºC~+40ºC(If ambient temperature 40ºC ~50ºC, please derate or strengthen heat sink
Ambient humiditySmaller than 95%RH, no condensation water
VibrationSmaller than 5.9m /s² (0.6g)
Storage temperature-40ºC~+70º C
ConfigurationDefending gradeIP20
Cooling modeBy fan with automatic temperature con

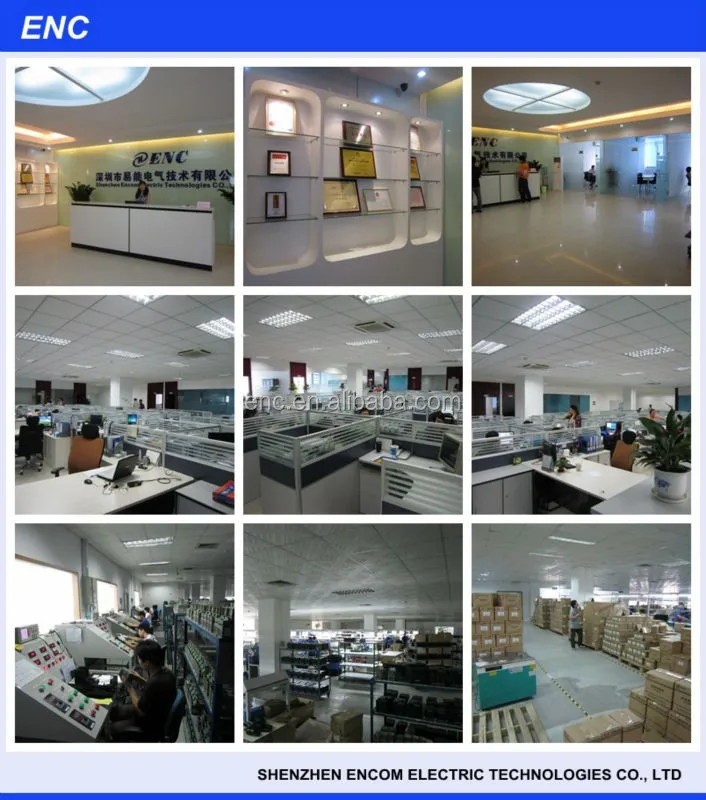

Why Choose Us

We will be your best choise for your local market of VFD for reasons as follow:

  • Chine Top 10 Manufacturer of Variable Frequency Drive-VFD/ AC Drive, PLC, Servo
  • 50 Research Staffs and 12 years R&D and manufacturing experience
  • CE, ISO9001:2008 and SGS Certificates for oversea market
  • Number of employees is 332, new factory size reach to 38,000 squre metres.
  • Domestic sales amount of VFD/ AC Drive160 million, Foreign sales amount 70 million annually in past 3 years
  • All VFD/AC Drive18-month warrantee and lifetime maintenance
  • Strict distribution system to protect the interests of super customer
  • All VFD/ AC Drive Software and hardware patents to keep our unique good quality.
  • VFD/ AC Drive Rapid delivery time 3~5 working days for small order less than 500pcs
  • OEM service is accepted when order amount is reasonable





Factory Price 220v 380v 400hz 0.2kw~1.5kw ENC Variable Frequency Drive-VFD/AC Drive for Motor Speed Control


Contact Soon

Shirley Zhang/ Oversea Division Sales

Skype: shirly_121 | Mobile& Whatsapp: +86 18689472927
Tel: +86-0755-26014358 |  Fax:  +86 (0)755 26985120
